Will A UV Light Fit Your Ductwork? How To Measure Before You Buy
October 8, 2026

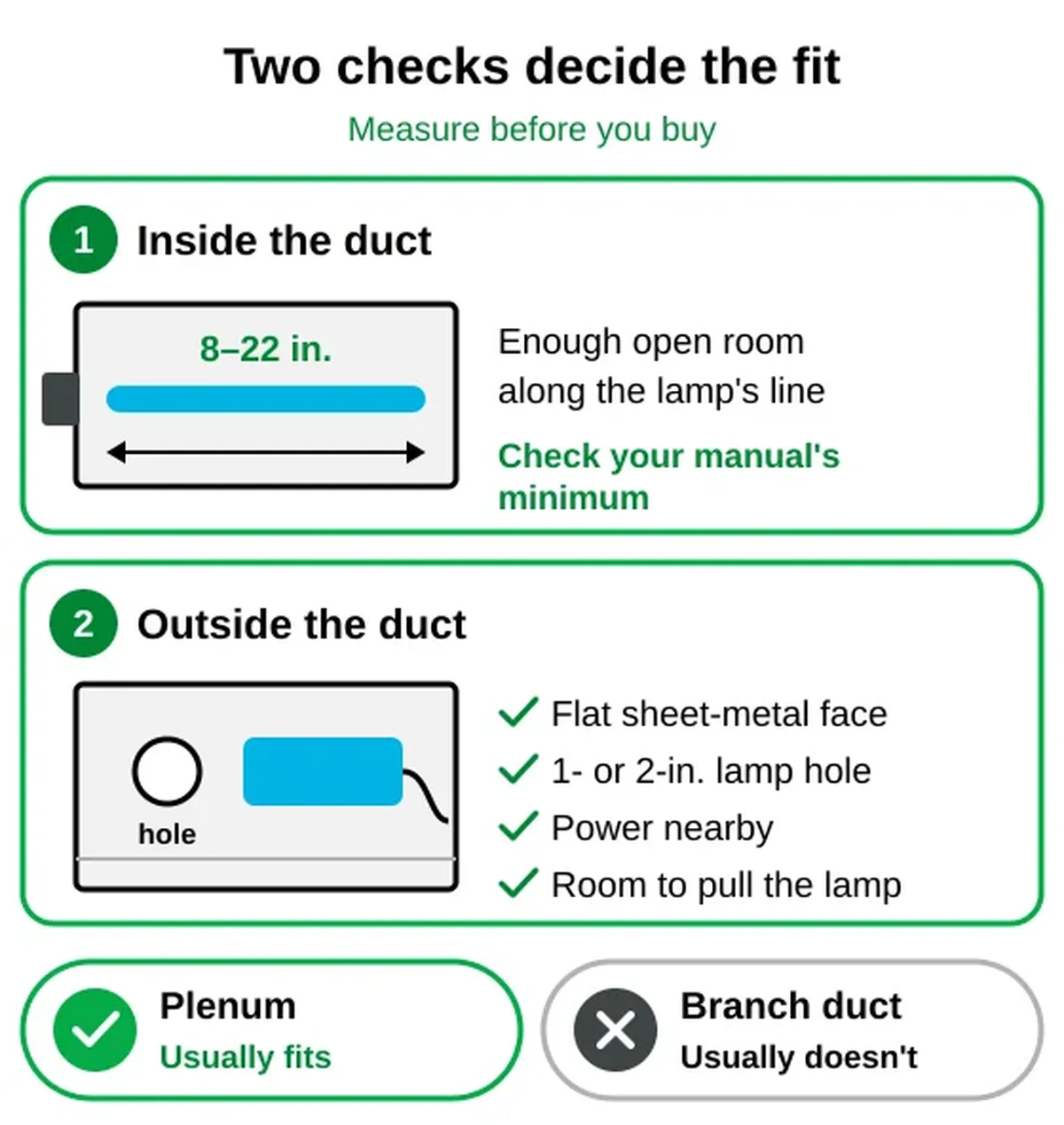

It fits if your duct passes two checks: enough room inside for the lamp, and a flat sheet-metal face outside to mount it. A plenum usually passes both. A branch duct usually doesn't.
Inside: room along the lamp's line, 8 to 22 inches in the three manuals we compared.
Outside: a flat metal face, a 1- or 2-inch hole, power, and room to remove the lamp.
A UV lamp captures no particles, so your air filter still does that work. Take the quick quiz below to find your filter match.
Answer a few quick questions and we'll match you to the right MERV rating for your home.
Already know your filter size? Shop air filters at Filterbuy
Whether a UV light fits your ductwork comes down to two sets of measurements. Inside, the space the lamp crosses must meet the manual's minimum, which ran from 8 to 22 inches in the three manuals Filterbuy compared. Outside, you need a flat sheet-metal face, a 1- or 2-inch lamp hole, power, and room to remove the lamp. A plenum usually passes both checks. A branch duct usually doesn't.
TL;DR
Most HVAC UV lights need a sheet-metal duct or plenum with enough room along the lamp's line to meet the manual's minimum. Manuals also call for 30 inches to 6 feet between the lamp and plastics such as flex duct. Filterbuy recommends measuring before you buy and checking the manual for your exact model.
Key Takeaways
The space the lamp crosses inside the duct must meet the manual's minimum, 8 to 22 inches in the manuals compared.
On the outside, you need a flat metal face, a 1- or 2-inch hole, power, and room to service the lamp.
UV-C breaks down plastics, so manuals require distance or a metal shield between the lamp and flex duct or non-fiberglass filters.
A plenum usually fits where a branch duct cannot, because branch runs are often small flex duct.
How Much Space Does A UV Light Need Inside Your Duct?
A UV light needs enough room inside the duct to meet its manual's minimum, measured along the line the lamp will run. The Filterbuy team lined up the published specs for three units.
Figures come from each manufacturer's published installation instructions. Confirm against the manual for the exact model and lamp you buy.
What We Learned Comparing Three UV Light Manuals
The Honeywell UV100E, Field Controls UV-E, and Lennox UVC-24V manuals each specify clearance differently. Four differences stood out.
No two manuals measure the same thing. One lists duct width and one lists duct depth. The third only says the full lamp must fit.
The minimum is not always the lamp length. Field Controls lists minimums shorter than its nominal lamp lengths, so measure against the manual rather than the box.
Plastic clearance varies widely. Depending on the model, it runs from 30 inches to 6 feet.
Hole sizes differ. Two units use a 2-inch hole and the third uses a 1-inch hole, so another brand's replacement may not fit the same opening.
Which Duct Dimension Should You Measure For A UV Light?
Measure the inside of the duct in the direction the lamp will point, which is not always the longest side. The Department of Energy guide to air duct design notes that ducts are built from sheet metal, fiberglass, or other materials, and duct board or liner eats into the open space.
Say your return plenum measures 20 by 14 inches outside, lined with 1-inch duct board. Take 2 inches off each dimension and you're left with 18 by 12 inches.
Illustrative example. Your duct's real inside dimensions decide the fit.
Half of these options fit only across the 18-inch side, so pick your mounting face before you order.
How Much Space Does A UV Light Need Outside The Duct?
On the outside, a UV light needs a flat sheet-metal face, plus power and room in front of the housing.
A flat mounting face. Seams, flanges, ribs, and access panels can block the base.
Power. The Field Controls UV-E runs on 120/240 volts, while 24-volt models such as the Lennox UVC-24V tie into low-voltage wiring.
Service room. Lamps come out from outside the duct, and Lennox calls for 30 degrees of rotational clearance to lock the holder.
How To Measure Your Duct For A UV Light

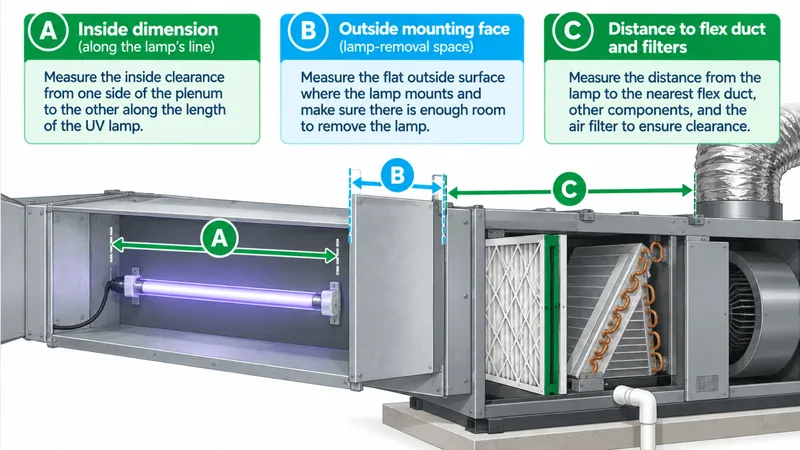

A tape measure and a flashlight will do. You need three numbers: inside space along the lamp's line, open space outside the mounting face, and distance to the nearest plastic.
Turn the system off. If a UV lamp is already installed, cut its power before you open any panel. An FDA safety warning on UV-C exposure cautions that some UV devices can injure skin and eyes within a few seconds.
Pick a spot on the supply or return plenum that matches your model's manual.
Decide which way the lamp will point, then measure the inside dimension along that line.
Check that the face is flat around the planned hole, with room in front to pull the lamp.
Measure how far that spot sits from flex duct, wiring, the drain pan, any humidifier, and your air filter.
Look inside the lamp's path for dampers or wiring.
Photograph each measurement and keep your notes with the model's spec sheet.
Why Does A Plenum Fit A UV Light When A Branch Duct Cannot?

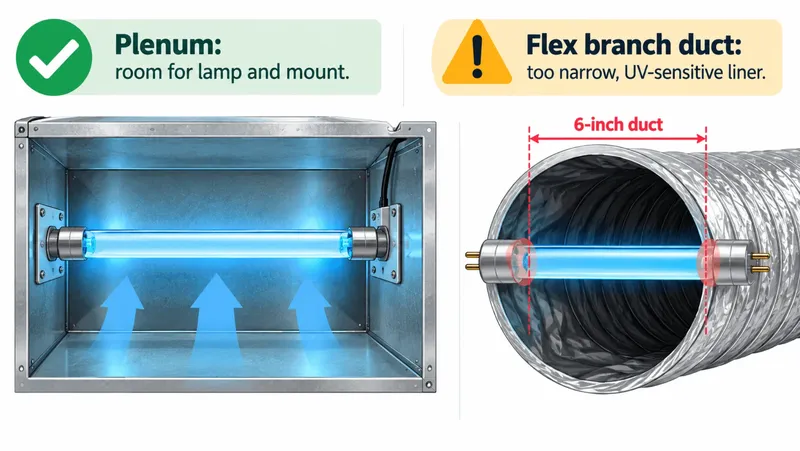

A plenum is the sheet-metal box attached to the air handler. It usually has the width and flat face a UV light needs, and flex duct tends to sit farther away. Branch ducts are often round flex duct with a liner that UV-C breaks down.
Duct size affects exposure time too. Filterbuy's comparison of coil vs. in-duct UV lights shows air at 500 feet per minute crosses a one-foot lit zone in about one-eighth of a second. Coil irradiation gets around this by keeping the light on the wet coil and drain pan, where mold tends to grow in an AC unit.
That is one reason the ASHRAE filtration and disinfection FAQ calls UV sizing "a complex process."
What If The UV Light Does Not Fit Your Duct?
If the numbers fall short, you have three options.
Choose a shorter lamp. The Field Controls UV-E comes in 12-, 18-, or 28-inch lamp versions, and Lennox lists a 14-inch accessory lamp (Y2121) for the UVC-24V.
Switch to a coil-mounted unit. It mounts at the coil cabinet instead of across an open duct.
Let the filter carry the load. A UV lamp captures no particles, so your filter does that work either way.
Where Does Your Air Filter Fit Into A UV Light Install?
As an air filter manufacturer, Filterbuy pays close attention to where the lamp points. Your filter should sit outside the lamp's direct line of sight or behind a shield. The FAQ below lists the manual distances.
The EPA guidance on UV lamps and mold states that typical home UVGI cleaners "have limited effectiveness in killing bacteria and molds," and Filterbuy's review of what the evidence shows on in-duct UV goes deeper.
Filter sizing has a similar trap. We cut filters about half an inch under nominal size so they slide in, as our guide to nominal and actual air filter sizes explains. UV fit works the opposite way. The duct has to be at least as roomy as the manual says.
If the UV install means moving your filter, Filterbuy makes stocked and custom air filter sizes, so you can shop your exact air filter size and follow our guide on how often to change your HVAC filter.
When Should An HVAC Technician Install Your UV Light?
Call a licensed HVAC technician if the install involves cutting near the coil or wiring into the air handler.
Filterbuy Pro Tip: Download the installation manual before you buy and tape any paper mounting template to your chosen spot. If it overlaps a seam or access panel, move before anyone cuts metal.
"None of the three manuals described clearance the same way. Homeowners should not have to decode that, so we built this guide around three measurements you can take yourself."
Michelle Wan, Brand Manager and Air Quality Writer, Filterbuy
Before you book, read how UV lights work in an HVAC system and what UV-C light is and why 254 nm matters, or browse the Filterbuy UV light resource library. In Florida service areas, you can also schedule Filterbuy HVAC Solutions UV light installation.
